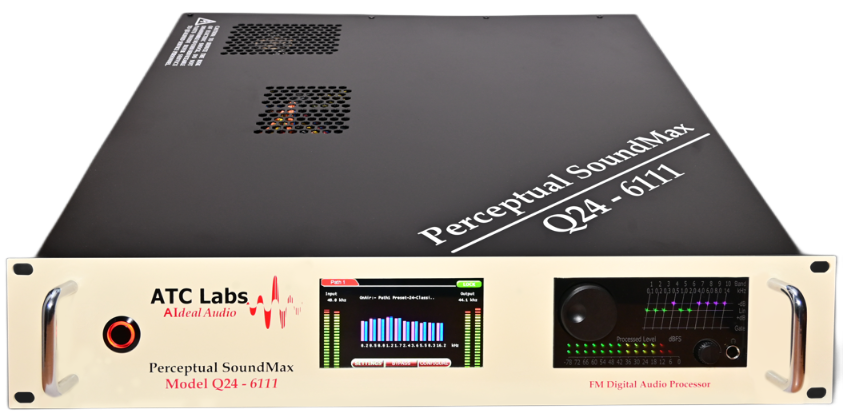

Perceptual SoundMax TM Model Q24 - 6111 and the new Model Q24 - 6111HD

24-band FM Audio Broadcast Processor with Internet Streaming now with SpatialMax Immersive Audio
portfolio

Perceptual SoundMaxTM is actually a many-in-one audio processing platform featuring unmatched 24 - band dynamics processing along with independent processing of Digital/HD channels, noise reduction, and Internet Streaming. The product comes ready with highest quality HE-AAC V1/V2 encoding and HLS encapsulation for internet streaming and links seamlessly with many distribution servers.

Craft a breathtakingly detailed, consistent, and balanced sound for your FM and HD/Digital Broadcasts using Perceptual SoundMaxTM 24 Band Audio Processor developed by ATC Labs. This product brings out novel innovations in audio processing & AI/ML based sound-quality enhancements. It is specifically designed for Professional Broadcasters by a team of some of the world's leading audio and speech scientists (former Bell Labs alumni) specializing in audio signal modeling & AI based analysis, psychoacoustics, and signal processing.

Audio Processing Tools Powered by Latest Research in Sound Perception

  • Multi-band (24-band) high-resolution Dynamic Range Compression (DRC) detailed time-frequency sound analysis.
  • Intelligent Loudness Control (ILC): Intelligent Loudness Control algorithm with enhanced subjective loudness models.
  • Vocal Enhancement (VE): Vocal, and dialog enhancement.
  • Bass Enhancement: Tunable bass boost module with 2-independent stages.
  • High Frequency enhancement and Stereo Enhancement.

Features Optimized for FM Broadcasts

  • Composite FM/MPX signal Generation with accurate 75 micro-sec or 50 micro-sec pre-emphasis and accurate peak limiting for maximizing modulate index of FM broadcasts.
  • Digital Composite MPX available at 192 kHz.
  • In box RDB/RBDS Encoder.

NielsenTM Watermarking Support In-Box Full Remote Control Through Networked PC Interface

Allow for remote control of the processor using SoundMaxTM Manager running on any PC present on the same Ethernet which automatically senses all available SoundMax hardware. Remote control features include:

  • Tuning of profiles: basic/advanced tuning.
  • Profile exports/import.
  • Configuration of Internet streaming parameters.

Perceptual SoundMaxTM Advantage

  • Enhanced Consistent Loudness: 24 Band Audio Processing allows packing in much higher audio density as compared to 5/6 band processing; thus significantly boosting the overall Sound consistency which results in much higher average modulation and enhanced coverage.
  • Crisp & Clear Sound: State of art signal processing ensures that the processing output is free of any phase distortions and doesn't sound over-processed. Thus, it enhances clarity in addition to loudness and presence.
  • Lively Broadcasts: Vocal Enhancement, Stereo Image Enhancement, Bass Enhancement, and available Sweetening tools make the sound livelier and pleasing to listen to.
  • Embedded Deep Audio AI Technology: Incorporates novel optimized AI/ML based Audio classifiers and analysis. This Patent pending Real-Time Multi-Class Hierarchical Audio Classification Deep ML model accurately Classifies signal into Noise, Speech, Instrumental Music, Vocal Music, genres with high accuracy and high resolution. Useful in adaptively changing processing parameters for best quality.

Specifications

Analog Audio Input

Configuration

Stereo


Connectors

Balanced XLR Female


Maximum Input Level

+24dBu / > 10kΩ


Nominal Input Level

Adjustable -10.0 to +12.0dBu


EMI Suppressed

Yes

Analog Audio Output

Configuration

Stereo


Connectors

Balanced XLR Male


Crosstalk

≤-90dB(20Hz to 20kHz)


SNR

≥ 90 dB (20 Hz to 20 kHz)


Distortion

THD≤0.01% (20Hz to 20kHz)


D/A Convertor Resolution

24-bit


EMI Suppressed

Yes


Output Level

Adjustable -6.0 to +20dBu

Digital Audio Input(AES/EBU)

Configuration

Stereo


Sampling Rate

32, 44.1 or 48 kHz (Auto Sense)


Word Length

16 bit or 24 bit


Input Reference Level

-25.0 to 0 dBFS


EMI Suppressed

Yes


Connecto

AES– XLR Female


Dual Digital Audio Output (AES/EBU)

Configuration

Two Stereo outputs with Individual software level control


Output Level

-20.0 to 0.0 dBFS


Connectors

AES – XLR Male


EMI Suppressed

Yes


Sampling Rate

32, 44.1, 48 kHz (User Selectable)

Ethernet & Remote PC Control

Configuration

Auto Presence Broadcast on Ethernet


Connectors

RJ-45, EMI-Suppressed

Composite Baseband Output

Configuration

Outputs with Individual software level Control


Maximum Output Level (unbalanced)

+12dBu


D/A Conversion

24 Bits


Signal to Noise Ratio

≥ 90 dB (20Hz-15kHz)


THD

0.01% (20 Hz to 15 kHz)


Stereo Separation

≥ 60 dB (20 Hz to 15 kHz)


Cross Talk

≤ 90 dB, channel to channel


38 kHz Suppression

> 90 dB


Pilot Protection

65 dB relative to 9% injection, +/- 500 Hz


Connectors

Coaxial BNC, EMI-Suppressed

Streaming Audio Output

Configuration

1 Internet stream out


Encoding Format

Enhanced AAC+ with ADTS encapsulation


Bit Rates

32 kbps – 256 kbps


Player Compatibility

VLC, Windows Media, Real Player


Browser Compatibility

IE,Chrome, Safari, Mozilla


Protocols

Unicast, Multicast, TCP, UDP


Distribution Servers

Icecast, Shoutcast

Power

Power Requirements

105-260 V AC Single Phase, 45-60 Hz


Connectors

IEC, EMI Suppressed, Detachable 3-wire chord with earthing.


Safety Standards

UL, CE


Operating Temperature range

0° to 50° C


Relative Humidity

95%

Dimensions

Width

19''


Height

2U(3.5'')


Depth

16.9''


Weight

About 5.5kg


Working Altitude

3000 meter AMSL
