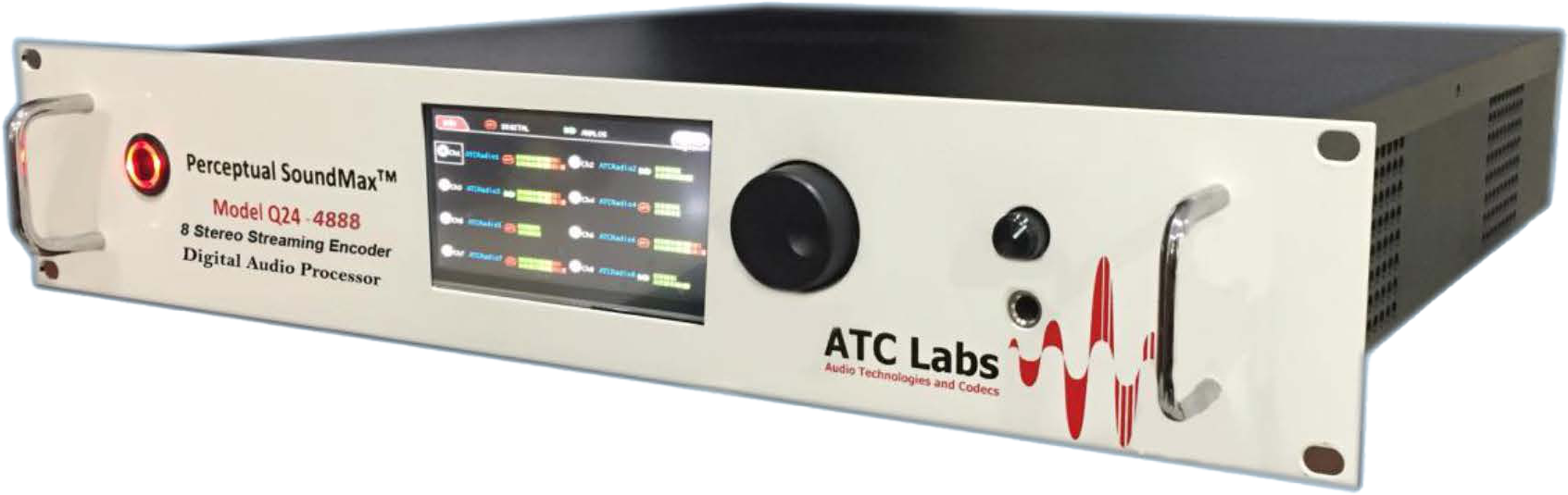

Perceptual SoundMax Audio Processors Model Q24-4880

portfolio

Perceptual SoundMaxTM Model Q24-4880 is actually 3 products rolled into one. It provides 2 completely independent 10-band processing paths - one for on-air FM processing and one for Internet streaming. Additionally, a high quality AAC/AAC+/MP3 encoder for Internet streaming is built in which is capable of connecting with industry standard IcecastTM streaming servers, as well as other CDN networks. This product can be combined with our Internet Radio Package. In terms of available audio processing modules the sophisticated 10-band processing engine is supplemented by a built-in broadcast grade wideband background noise removal product as well as a suite of audio conditioning/sweetening tools into one box, eliminating the need for broadcasters to place 3 or more separate hardware products in their broadcast chain to achieve the similar impact.

Specifications

Digital Audio Input(AES/EBU)

Configuration

8 Stereo


Sampling Rate

32, 44.1 or 48kHz (Auto Sense)


Word Length

16 bit or 24 bit


Input Reference Level

-25.0 to 0 dBFS


EMI Suppressed

Yes

Digital Audio Output (AES/EBU)

Configuration

8 Stereo


Sampling Rate

32, 44.1 or 48kHz (User Selectable)


Connectors

AES – XLR Female


Output Level

-20.0 to 0.0 dBFS


EMI Suppressed

Yes

Streaming Audio Output

Configuration

8 independent Streams


Encoding Format

Enhanced AAC+ with ADTS encapsulation


Bit Rates

32 kbps – 256 kbps


Player Compatibility

VLC, Windows Media, Real Player


Browser Compatibility

IE,Chrome, Safari, Mozilla


Protocols

Unicast, Multicast, TCP, UDP


Distribution Servers

Icecast, Shoutcast

Ethernet and Remote PC Controls

Configuration

Auto Presense Broadcast on Ethernet


Management Control

Powerful Soundmax Manager software on any networked PC for auto sense monitoring, configuration and control


Connectors

RJ-45, EMI-Suppressed

Power

Power Requirements

105-260 V AC Single Phase, 45-60Hz


Connectors

IEC, EMI Suppressed, Detachable 3-wire chord


Safety Standards

UL, CE

Dimensions

Width

19''


Height

4.37''


Depth

20''


Weight

5.5kg


Working Altitude

3000 meter AMSL
