 Outstanding Audio Quality: High Fidelity     Stereo/Mono

 Extremely low audio coding delay

 High connectivity through firewalls using ATC     Labs SIP server no need for fixed IP     addresses

 Receive and broadcast live audio from any     where in the world directly & continuously     using 2G/3G wireless or wired Internet

 Supports a host mode and a reporter     allowing host control over individual reporter     parameters like on the fly bit rates, change     volume control etc.

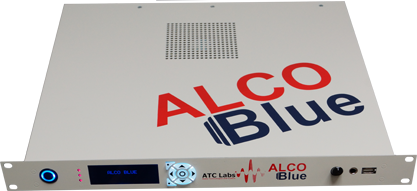

ALCO Blue is a rack mountable platform featuring an integrated hardware codec. This product is designed specifically to meet the demand of the broadcast industry. It offers a no-compromise, high quality, low-cost, Internet based On Air broadcasting solution, providing outstanding audio quality with low latency and high connectivity. This product is our hardware codec version of our popular ALCO Professional, as such it is completely compatible.

This is a reliable IP communicator based on proprietary ATC Labs audio & SIP technology. Main applications include studio-Transmitter link (STL) and field reporting anywhere in the world. It is designed to deliver high quality, crystal clear audio to the broadcasting station, in real time. This is due to the extremely low audio coding delay. ALCO Blue can use any available IP network, such as a 3G/4G, wireless, wired or hotspots. It supports audio input and output via XLR or USB devices.

On the broadcast studio side, the codec can be configured in a host mode. This allows multiple reporters or transmitters to be added to a single call. The host can individually configure the parameters for each reporter or transmitter, such as bit rates, audio level and buffering.

ALCO Blue supports advanced features such as text based messaging, call hold, offline reports & file transfer. The messaging functionality is quite useful for sending instructions to reporters in the middle of an active broadcast. Multiple bit rate options (32/64/128/192/256 kbps) are supported, using ATC Labs proprietary perceptual audio compression technology: Audio Communication Coder (ACC). Our ACC codec is what makes this product truly stand apart from the competition.

This product is designed to function in, as well as complement our existing ALCO Enterprise Network. It is designed to function with ALCO Professional and ALCO Manager, as well as other ALCO Blue units. This allows ALCO Blue to expand upon the ATC Labs products you already use.

TECHNICAL SPECIFICATIONS
 Codec Bit rates  32, 64, 128, 192 & 256  kbps
 Frequency Response  (0Hz  to  120kHz) @ ± 0.1dB
 Channels Available  Full stereo at 128 kbps or higher
 Dynamic Range  Greater than 90 dB
 Signal to Noise ratio  > 104dB
 Analog Input  Stereo XLR connectors, EMI Suppressed
 Analog Output  Stereo XLR connectors, EMI Suppressed
 AES/EBU Input  Standard XLR connector, EMI Suppressed
 AES/EBU Input  Standard XLR connector, EMI Suppressed
 GPIO Interface  9 pin D-Sub, 2 input & 2 output contacts
 Distortion (THD)  < 0.001%
