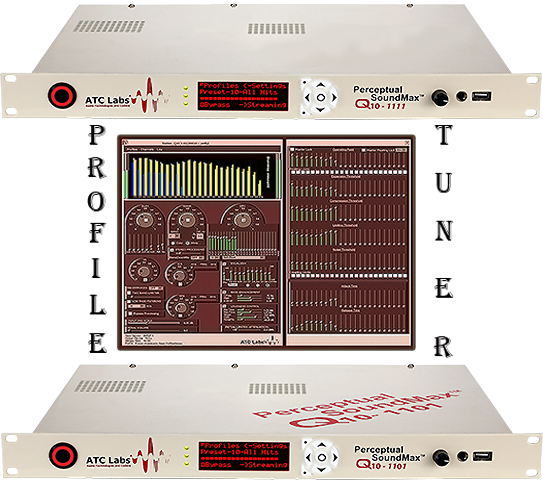

Model Q10 - 1111/1101 is a cost effective high quality 10 band audio processor that features two processors. Each completely independent to service streaming and on air separately. This product is great for single stream broadcasting as well as audio distribution

Enhanced Loudness:
10 Band Audio Processing allows packing in much higher volume as compared to 5 band processing; thus significantly boosting the overall Sound Density which results in much higher average modulation and enhanced coverage.

Increased Clarity:
Automatic detection and removal of background noise gives better clarity, thereby increasing the listening pleasure and reduction in fatigue over long periods of Listing.

Crisper Sound:
10 Band intelligent Dynamic Range Compression (DRC) with High Resolution Processing provides better detailing/presence of various instruments thereby enhancing clarity.

Lively Broadcast:
The Vocal Enhancement, Stereo Image Stabilization, Bass Boosting and Sweating Tools make your broadcasts sound livelier.

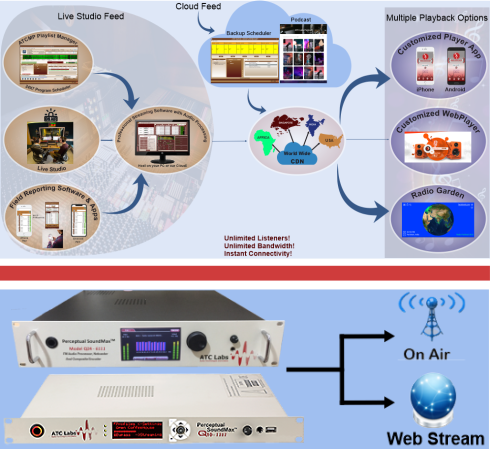

Internet Streaming:
The built in internet streaming allows your Broadcast to be accessed by anyone anywhere with an internet connection using industry standard AACplus encoder enhanced by advanced ATC Labs Psychoacoustic Models. Both versions are available as part of our Internet Package

SoundMaxTM Q10 has two flavours: SoundMaxTM Q10-1111 and SoundMaxTM Q10-1101.

Model Q10-1111 is the Q10 audio processor having both digital & analog audio I/O with 1 AAC/AACplus webstream out, featuring two fully independent audio processors.
Model Q10-1101 is the Q10 audio processor having only analog audio I/O with 1 AAC/AACplus webstream out, featuring two fully independent audio processors.

Remote Control-Networked PC Interface:
Support an Ethernet port to connect to a local network. The primary utility of this feature is to allow for remote control of the processor using a Controller Software called SoundMaxTM Manager running on any PC present on the same Ethernet. The presence of one or more Preceptual SoundMaxTM processors on the network is automatically sensed once the Controller is run on a PC.

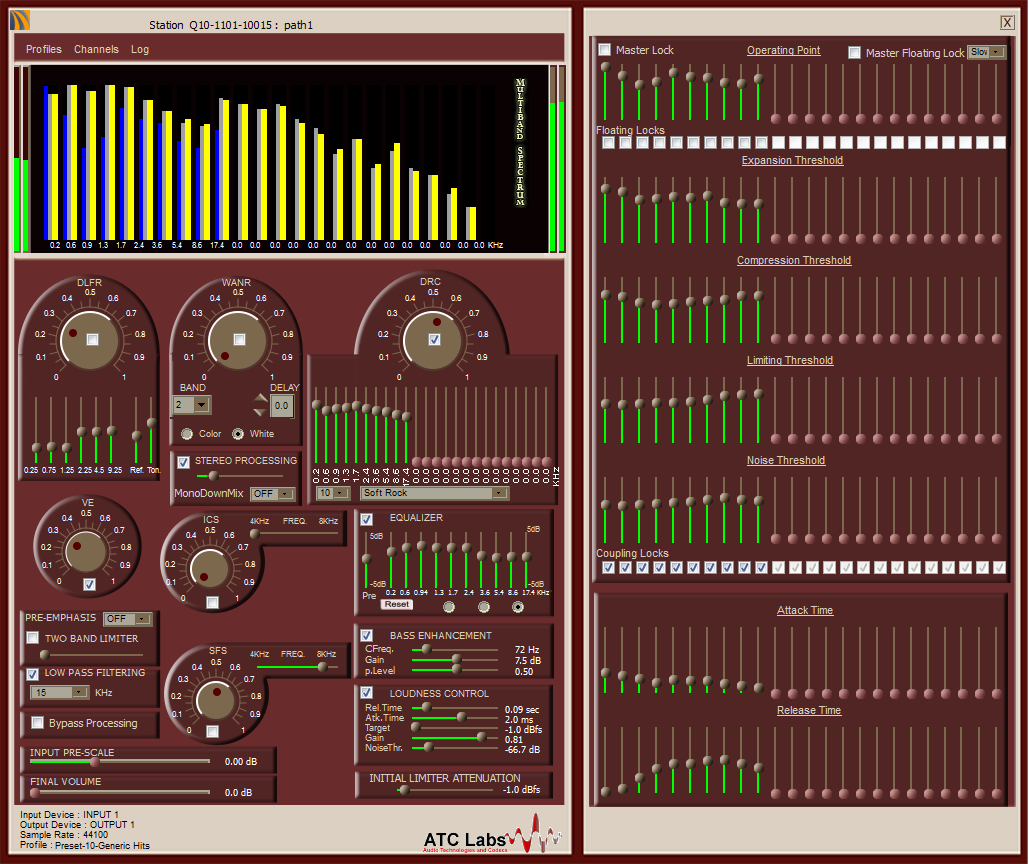

Following operations can be done through the SoundMax Manager:
Tuning of profiles: All processing modules can be tuned in real time.
Configuration of Internet streaming parametrs such as bit rate, codec type.
Monitoring of health & status of the processors.
One or more processors can be monitored and controlled centrally.
