SPECIFICATIONS
Choose the right SoundMax solution for your Broadcast Service
* All the processors are embedded with netcasting solution
FRONT PANEL CONTROLS

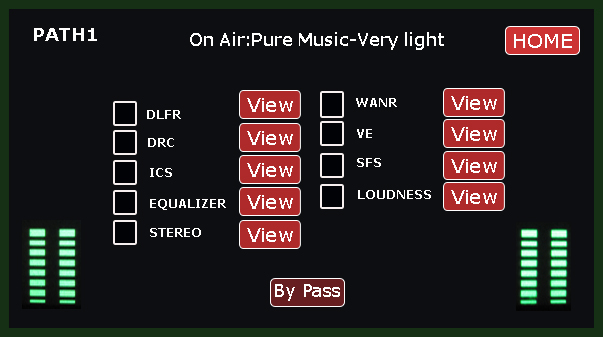

View the health of the channel in the form of I/O VU meter and bar graph for multiple processing bands.

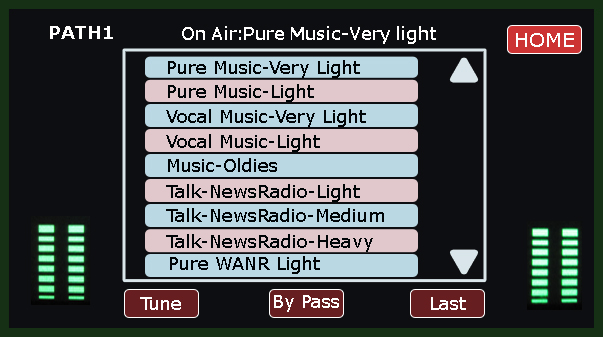

Select from a list of preset profiles the configuration you want to load on the running channel.
Create new audio profiles by fine tuning the various audio processing blocks.
24 band dynamics processing. Psychoacoustically Tuned. Livelier, breathtakingly more detailed sound. Automatic broadcast grade noise removal. Novel Voice/Vocal enhancer. Audio Sweetening tools. Listener Fatigue Reduction. Balanced Analog Input/Output. Digital AES Input/Output. Composite FM output. Pilot/SCA/RDBS Multiplexing. Second processing path with Digital output. Front Panel full TFT control.

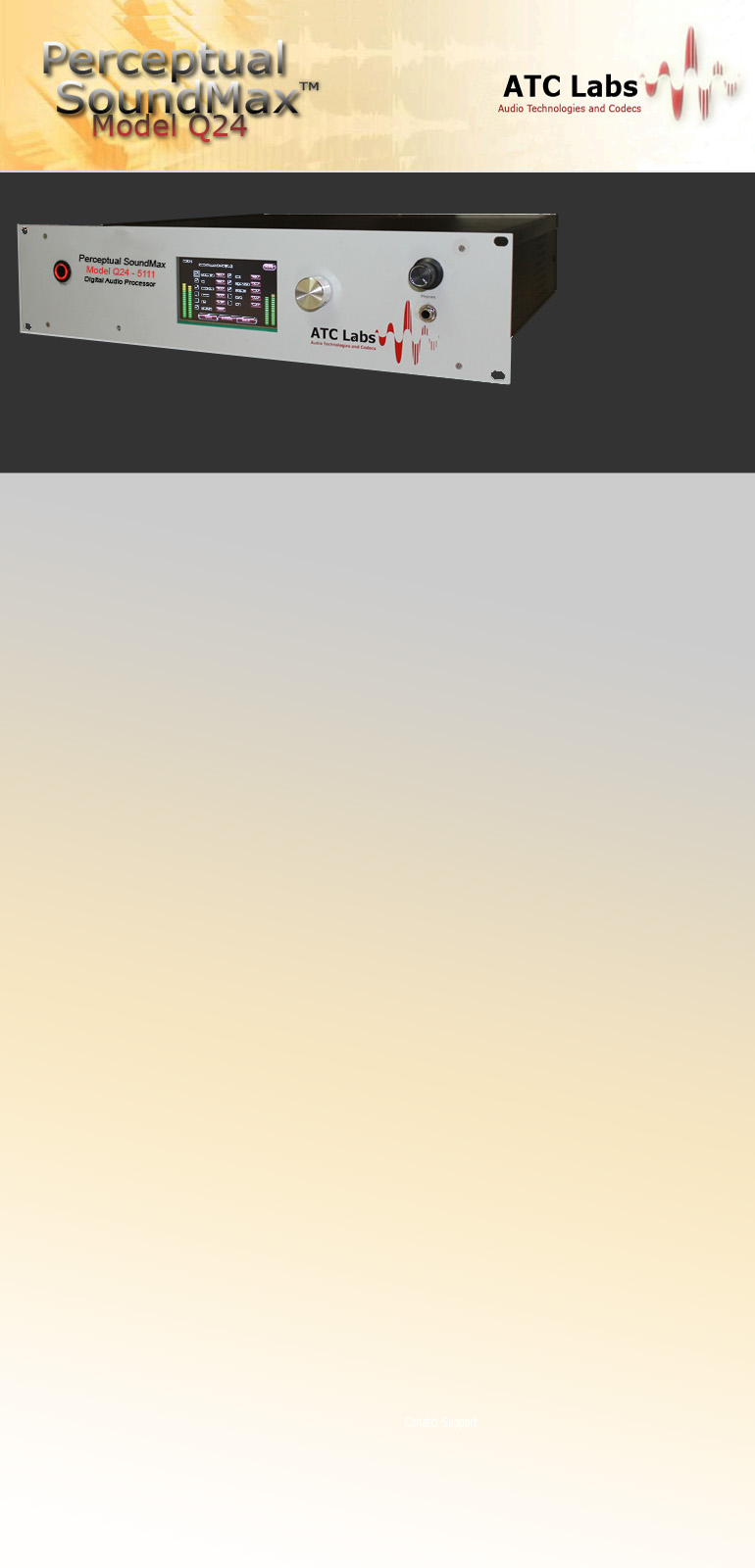

Model Q24 is a new rack mount 24 band audio processor offering performance and reliability demanded by rugged broadcast environments. Unmatched audio quality based on our latest research in Signal Processing and Psychoacoustics is combined with unmatched configurability for creation of a signature sound.
Model Q24 product family is actually 3 products rolled into one - in additional to a breakthrough new 24 band dynamics processor, it incorporates a new broadcast grade wide-band background automatic noise removal product as well as a suite of brand new audio conditioning/sweetening tools into one box. It thus eliminates the need for broadcasters to place 3 or more separate products in their broadcast chain while still not being able to achieve similar audio impact. Enjoy and create an incredibly clean sound unaffected by phase distortions and other relics of a previous generation of signal processing. Model Q24 includes all standard inputs and outputs expected of a product of this class such as Digital AES I/O balanced Analog I/O, baseband composite FM outputs, SCA & RDS inputs, etc. It offers an attractive touch-screen interface for user control and is supplemented by sophisticated software that allow unsurpassed monitoring and tuning options using a networked PC based remote control. The product comes pre-loaded with multiple processing presets matched to different genres and allows the user to create and save as many custom profiles as desired. Based on the highest quality components, the product is meant for uninterrupted 24x7 operations for years with minimum maintenance requirement. FM broadcasters also have access to a pre-emphasis tool and a carefully designed look-ahead limiting tool.
See also, our Model Q10 line of 10 band processors!
See also, our Model Q10 line of 10 band processors!
- Analog Audio Input
-
Configuration Left and Right/Stereo Connectors Balanced XLR Female Maximum Input Level/Impedence +24dBu/ < 10k? A/D Convertor Resolution 24-bit EMI Suppressed Yes
-
- Analog Audio Output
-
Configuration Stereo Connectors Balanced XLR Male Crosstalk ≤ -80
( 20Hz to 20KHz )Distortion < 0.05% THD
( 20Hz to 20KHz )D/A Convertor Resolution 24-bit EMI Suppressed Yes Frequency Response ± 0.5 dB
( 20Hz to 20Khz )
-
- Digital Audio Input(AES/ EBU)
-
Configuration Stereo Connectors AES – XLR Female Sampling Rate 32, 44.1, 48, 88.2 & 96 kHz (Auto Sense) EMI Suppressed Yes
-
- Digital Audio Output(AES/ EBU)
-
Configuration Stereo Connectors AES – XLR Male Sampling Rate Sampling Rate: 32, 44.1, 48, 88.2 & 96 kHz
(Software Selectable)EMI Suppressed Yes
-
- Composite Baseband Output
-
Only in Q24 & Q24Duo Configuration Two Outputs with Individual Trim Control Connectors Coaxial BNC Maximum Output Level(unbalanced) +12dBu D/A Conversion 24 Bits Signal to Noise Ratio -108dB @ 48kHz ( A-weighted) Dynamic Range 109dB @ 48kHz (A-weighted) THD +N 0.0023%, 1kHz, -1dBFS @ 48kHz Stereo Separation > 60 dB Cross Talk -105 dB, 1kHz channel to channel 38kHz Suppression > 70 dB Pilot Protection 60 dB relative to 9% injection, +/- 500 Hz 57 kHz (RDS) Protection 55 dB relative to 4% injection, +/- 2 kHz
-
- Ethernet & Remote PC Control
-
Configuration Auto Presence Broadcast on Ethernet Connector RJ-45 Control Controller Software on any networked PC for auto sense monitoring and control
-
- Second Processing Path
-
Only in Q24Duo Completely independent proceessing on a second digital output
-
- Dimensions
-
Width 19” Height 2.5 U Depth 25”
-
- Power
-
Power Requirements 105-260 V AC Single Phase, 45-60 Hz Connector IEC, EMI Suppressed, Detachable 3-wire chord Safety Standards UL, CE
-
- Front Panel View
-

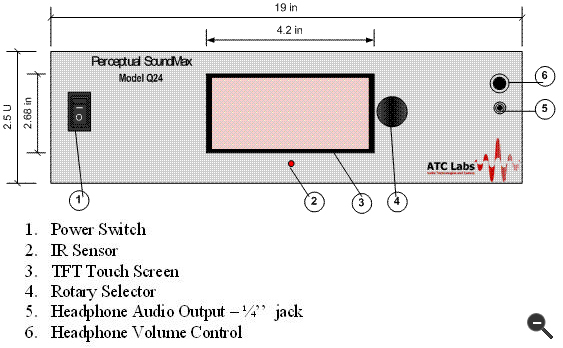

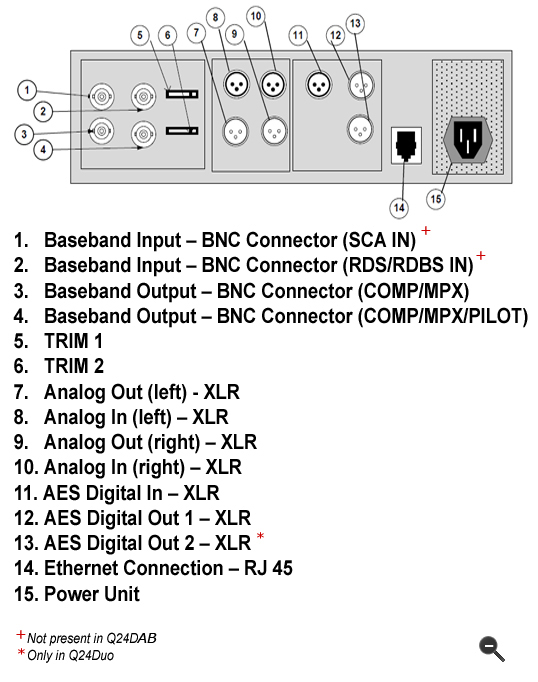

- Back Panel View
-
